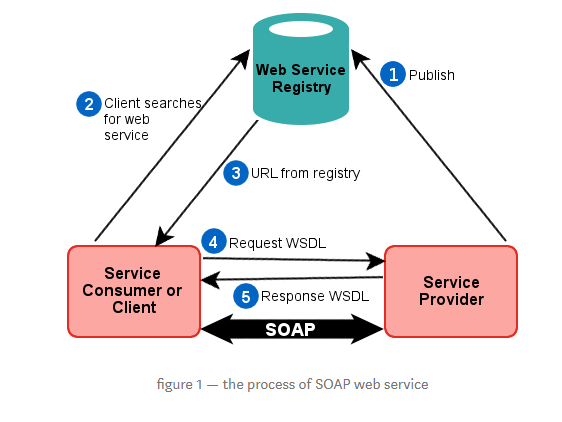

SOAP (Simple Object Access Protocol)
웹 서비스 간의 통신을 위한 프로토콜
SOAP는 플랫폼 및 언어에 독립적이며, XML을 사용하여 데이터를 교환하는 기술
주로 웹 서비스에서 사용되며, 클라이언트와 서버 간의 표준화된 메시지 전달 방식을 제공

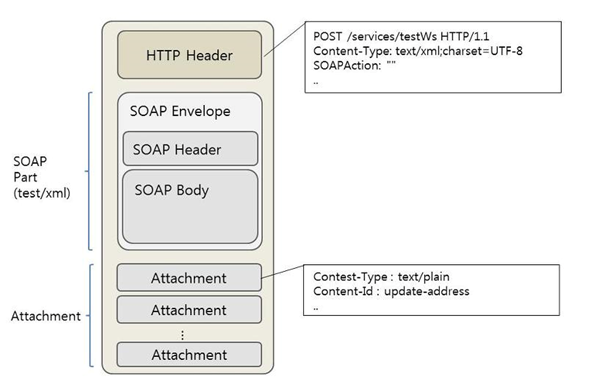

<Envelope>
<Header>...</Header>
<Body>...</Body>
<Fault>...</Fault>
</Envelope>
- Envelope: 모든 SOAP 메시지의 최상위 요소로, 메시지를 감싸는 역할
- Header: 선택적 요소로, 메시지의 부가적인 정보를 포함
- Body: 메시지의 실제 데이터를 포함
- Fault: 오류 발생 시 오류 정보를 포함
import javax.xml.soap.MessageFactory;
import javax.xml.soap.SOAPBody;
import javax.xml.soap.SOAPBodyElement;
import javax.xml.soap.SOAPConstants;
import javax.xml.soap.SOAPEnvelope;
import javax.xml.soap.SOAPException;
import javax.xml.soap.SOAPFactory;
import javax.xml.soap.SOAPMessage;
public class SOAPExample {
public static void main(String[] args) {
try {
// SOAP 메시지 생성
MessageFactory factory = MessageFactory.newInstance(SOAPConstants.SOAP_1_2_PROTOCOL);
SOAPMessage message = factory.createMessage();
SOAPFactory soapFactory = SOAPFactory.newInstance();
SOAPEnvelope envelope = message.getSOAPPart().getEnvelope();
// Header 생성 (선택적)
// SOAPHeader header = envelope.getHeader();
// Body 생성
SOAPBody body = envelope.getBody();
SOAPBodyElement element = body.addBodyElement(soapFactory.createName("HelloWorld"));
element.addChildElement("Message").addTextNode("Hello, SOAP!");
// SOAP 메시지 출력
message.writeTo(System.out);
} catch (SOAPException e) {
e.printStackTrace();
} catch (Exception e) {
e.printStackTrace();
}
}
}
WSDL (Web Services Description Language)
웹 서비스의 기능, 메시지 형식, 프로토콜 등을 정의하는 XML 기반의 언어
클라이언트가 웹 서비스의 기능을 이해하고 요청
<?xml version="1.0"?>
<definitions xmlns="http://schemas.xmlsoap.org/wsdl/"
xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/"
xmlns:tns="http://example.com/stockquote.wsdl"
targetNamespace="http://example.com/stockquote.wsdl">
<!-- Message 정의 -->
<message name="GetStockQuoteRequest">
<part name="ticker" type="string"/>
</message>
<message name="GetStockQuoteResponse">
<part name="price" type="float"/>
</message>
<!-- Port Type 정의 -->
<portType name="StockQuotePortType">
<operation name="GetStockQuote">
<input message="tns:GetStockQuoteRequest"/>
<output message="tns:GetStockQuoteResponse"/>
</operation>
</portType>
<!-- Binding 정의 -->
<binding name="StockQuoteSoapBinding" type="tns:StockQuotePortType">
<soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/>
<operation name="GetStockQuote">
<soap:operation soapAction="http://example.com/stockquote/GetStockQuote"/>
<input>
<soap:body use="literal"/>
</input>
<output>
<soap:body use="literal"/>
</output>
</operation>
</binding>
<!-- Service 정의 -->
<service name="StockQuoteService">
<port name="StockQuotePort" binding="tns:StockQuoteSoapBinding">
<soap:address location="http://example.com/stockquote"/>
</port>
</service>
</definitions>
- Types: 데이터 타입을 정의하는 섹션
- Message: 웹 서비스가 주고 받는 메시지 형식을 정의
- Port Type: 웹 서비스의 인터페이스를 정의
- Binding: 메시지와 프로토콜을 연결하여 실제 통신을 정의
- Service: 웹 서비스의 주소와 접근 가능한 동작을 정의
import javax.xml.namespace.QName;
import javax.xml.ws.Service;
import java.net.URL;
public class StockQuoteClient {
public static void main(String[] args) {
try {
// WSDL 파일의 URL
URL wsdlURL = new URL("http://example.com/stockquote.wsdl");
// 서비스와 포트 이름 지정
QName serviceName = new QName("http://example.com/stockquote.wsdl", "StockQuoteService");
QName portName = new QName("http://example.com/stockquote.wsdl", "StockQuotePort");
// 서비스 생성
Service service = Service.create(wsdlURL, serviceName);
// 서비스 인터페이스를 통해 원격 메서드 호출
StockQuotePortType client = service.getPort(portName, StockQuotePortType.class);
// 원격 메서드 호출
GetStockQuoteRequest request = new GetStockQuoteRequest();
request.setTicker("AAPL"); // 설정할 값에 따라 변경
GetStockQuoteResponse response = client.GetStockQuote(request);
// 결과 출력
System.out.println("Stock Price: " + response.getPrice());
} catch (Exception e) {
e.printStackTrace();
}
}
}

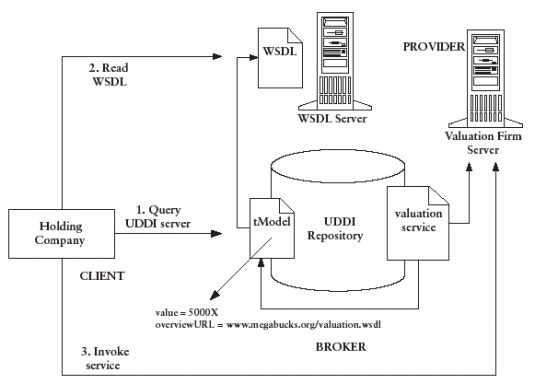

UDDI (Ubiversal Description, Discovery, and Integration
웹 서비스를 등록, 검색 및 발견하기 위한 표준 프로토콜 및 레지스트리 시스템
- UDDI 레지스트리: 웹 서비스 정보를 저장하고 검색하는 중앙 레지스트리
- UDDI 클라이언트: 웹 서비스를 등록하고 검색하기 위한 응용 프로그램
import org.apache.juddi.api_v3.*;
import org.apache.juddi.v3.client.config.UDDIClerk;
import org.apache.juddi.v3.client.transport.TransportException;
import org.uddi.api_v3.*;
import org.uddi.v3_service.UDDIPublicationPortType;
import org.uddi.v3_service.UDDISecurityPortType;
import org.uddi.v3_service.UDDIInquiryPortType;
public class UDDIClientExample {
public static void main(String[] args) throws Exception {
// UDDI 서버 연결 설정
UDDIClient uddiClient = new UDDIClient("META-INF/uddi.xml");
UDDIClerk clerk = uddiClient.getClerk("default");
try {
// 엔터프라이즈의 비즈니스 정보 생성
BusinessEntity myBusiness = new BusinessEntity();
myBusiness.getName().add(new Name("My Business", null));
myBusiness.setBusinessServices(new BusinessServices());
BusinessService myService = new BusinessService();
myService.getName().add(new Name("My Service", null));
myService.setBusinessKey(clerk.register(myBusiness).getBusinessKey());
clerk.register(myService);
// 웹 서비스 정보 생성
BindingTemplate myBindingTemplate = new BindingTemplate();
myBindingTemplate.setAccessPoint(new AccessPoint("http://myservice.com", "endPoint"));
myBindingTemplate.setServiceKey(myService.getServiceKey());
clerk.register(myBindingTemplate);
// 웹 서비스 검색
UDDIInquiryPortType inquiry = uddiClient.getTransport("default").getUDDIInquiryService();
FindService fs = new FindService();
fs.setAuthInfo(clerk.getAuthToken());
fs.getName().add(new Name("My Service", null));
ServiceList foundServices = inquiry.findService(fs);
if (foundServices.getServiceInfos() != null) {
for (ServiceInfo serviceInfo : foundServices.getServiceInfos().getServiceInfo()) {
System.out.println("Found Service: " + serviceInfo.getName().get(0).getValue());
}
}
} catch (TransportException e) {
e.printStackTrace();
}
}
}
