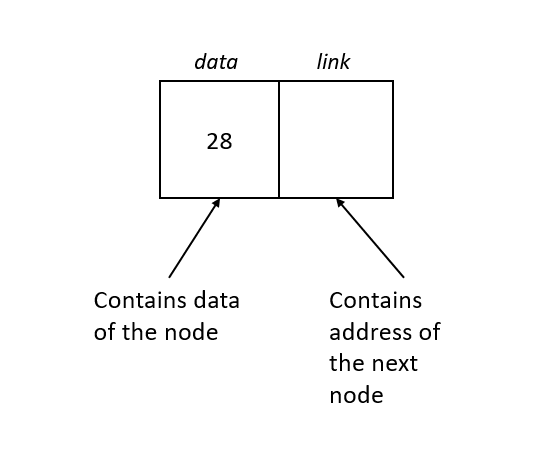

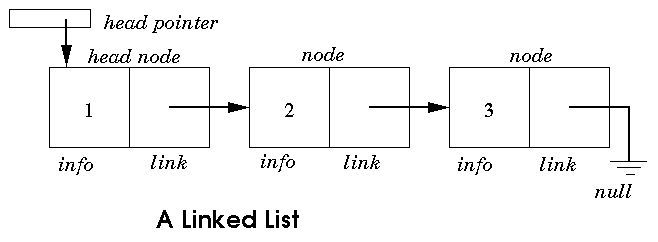

데이터를 노드(Node)로 구성하고 노드들이 포인터를 통해 연결된 리스트
데이터의 동적인 관리와 삽입/삭제 연산이 주로 필요한 경우에 유용하며, 특히 크기가 미리 예측하기 어려운 상황에서 활용됨
- 장점
크기의 제한이 없음: 연결 리스트는 동적으로 크기를 조절할 수 있으므로, 데이터의 추가 및 삭제가 자유로움
삽입과 삭제가 용이: 원하는 위치에 노드를 추가하거나 삭제하기가 상대적으로 간단하며 포인터로 연결되어 있어 가리키는 노드만 변경
메모리 효율적 활용: 크기가 동적이므로 필요한 메모리만 사용하며, 메모리의 재사용이 가능
데이터의 순차적 배치: 데이터 입력시 주소가 순차적이지 않아 요소를 메모리의 어느곳에나 배치할 수 있어 메모리 관리 측면에서 유용 - 단점
랜덤 액세스 불가: 연결 리스트는 노드들이 포인터로 연결되어 있어 특정 위치의 데이터에 랜덤으로 접근하는 것이 어려여 순차 접근이 일반적임
추가적인 메모리 소요: 각 노드마다 추가적인 포인터 공간이 필요하므로, 배열에 비해 메모리 사용량이 더 많을 수 있음
검색 속도 저하: 특정 데이터를 검색할 때 모든 노드를 순차적으로 탐색해야 하므로, 검색 속도가 배열에 비해 느림

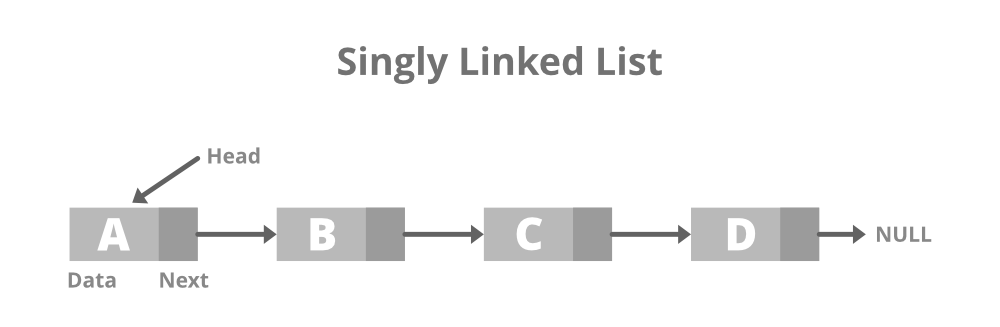

단순 연결리스트(Sinlgy Linked List)
데이터를 노드(Node)로 구성하고, 각 노드는 다음 노드를 가리키는 링크(포인터)를 가지는 자료구조
package datastructure.linear;
// 노드 클래스 정의
class SinglyNode {
int data;
SinglyNode next;
public SinglyNode(int data) {
this.data = data;
this.next = null;
}
}
// 단순 연결리스트 클래스 정의
class SinglyLinkedList {
private SinglyNode head;
public SinglyLinkedList() {
this.head = null;
}
// 노드 추가 메서드
public void addNode(int data) {
SinglyNode newNode = new SinglyNode(data);
if (head == null) {
head = newNode;
} else {
SinglyNode current = head;
while (current.next != null) {
current = current.next;
}
current.next = newNode;
}
}
// 노드 출력 메서드
public void display() {
SinglyNode current = head;
while (current != null) {
System.out.print(current.data + " -> ");
current = current.next;
}
System.out.println("null");
}
}
public class SinglyLinkedListTest {
public static void main(String[] args) {
SinglyLinkedList list = new SinglyLinkedList();
list.addNode(1);
list.addNode(2);
list.addNode(3);
list.display(); // 출력: 1 -> 2 -> 3 -> null
}
}

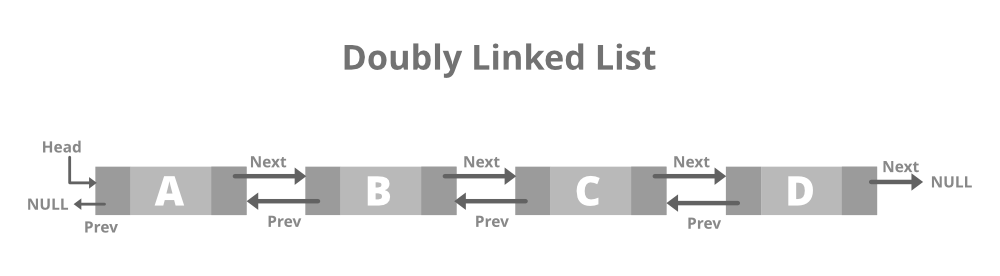

이중 연결 리스트(Doublely LinkedList)
각 노드가 이전 노드와 다음 노드를 가리키는 형태의 연결 리스트
package datastructure.linear;
// 노드 클래스 정의
class DoublyNode {
int data;
DoublyNode prev;
DoublyNode next;
public DoublyNode(int data) {
this.data = data;
this.prev = null;
this.next = null;
}
}
// 이중 연결리스트 클래스 정의
class DoublyLinkedList {
private DoublyNode head;
private DoublyNode tail;
public DoublyLinkedList() {
this.head = null;
this.tail = null;
}
// 노드 추가 메서드
public void addNode(int data) {
DoublyNode newNode = new DoublyNode(data);
if (head == null) {
head = newNode;
tail = newNode;
} else {
tail.next = newNode;
newNode.prev = tail;
tail = newNode;
}
}
// 노드 출력 메서드 (순방향)
public void displayForward() {
DoublyNode current = head;
while (current != null) {
System.out.print(current.data + " -> ");
current = current.next;
}
System.out.println("null");
}
// 노드 출력 메서드 (역방향)
public void displayBackward() {
DoublyNode current = tail;
while (current != null) {
System.out.print(current.data + " -> ");
current = current.prev;
}
System.out.println("null");
}
}
public class DoublyLinkedListTest {
public static void main(String[] args) {
DoublyLinkedList list = new DoublyLinkedList();
list.addNode(1);
list.addNode(2);
list.addNode(3);
System.out.println("Forward Display:");
list.displayForward(); // 출력: 1 -> 2 -> 3 -> null
System.out.println("Backward Display:");
list.displayBackward(); // 출력: 3 -> 2 -> 1 -> null
}
}

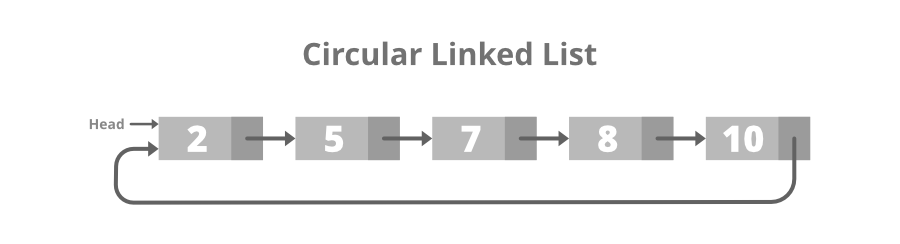

원형 연결 리스트(Circular LinkedList)
노드들이 원형으로 연결된 자료구조로서 마지막 노드가 첫 번째 노드를 가리키며, 리스트의 끝을 검사하는 데 유용
package datastructure.linear;
// 노드 클래스 정의
class CircularNode {
int data;
CircularNode next;
public CircularNode(int data) {
this.data = data;
this.next = null;
}
}
// 원형 연결리스트 클래스 정의
class CircularLinkedList {
private CircularNode head;
private CircularNode tail;
public CircularLinkedList() {
this.head = null;
this.tail = null;
}
// 노드 추가 메서드
public void addNode(int data) {
CircularNode newNode = new CircularNode(data);
if (head == null) {
head = newNode;
tail = newNode;
newNode.next = head; // 첫 번째 노드를 가리키도록 설정
} else {
tail.next = newNode;
tail = newNode;
tail.next = head; // 마지막 노드가 첫 번째 노드를 가리키도록 설정
}
}
// 원형 연결리스트 출력 메서드
public void display() {
if (head == null) {
System.out.println("리스트가 비어 있습니다.");
return;
}
CircularNode current = head;
do {
System.out.print(current.data + " -> ");
current = current.next;
} while (current != head);
System.out.println();
}
}
public class CircularLinkedListTest {
public static void main(String[] args) {
CircularLinkedList list = new CircularLinkedList();
list.addNode(1);
list.addNode(2);
list.addNode(3);
System.out.println("원형 연결리스트 출력:");
list.display();
}
}
